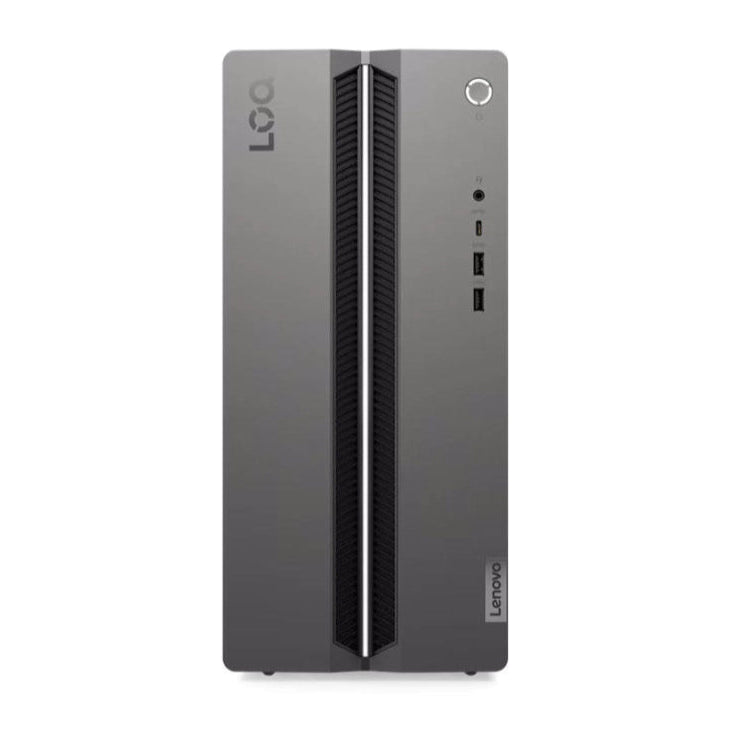

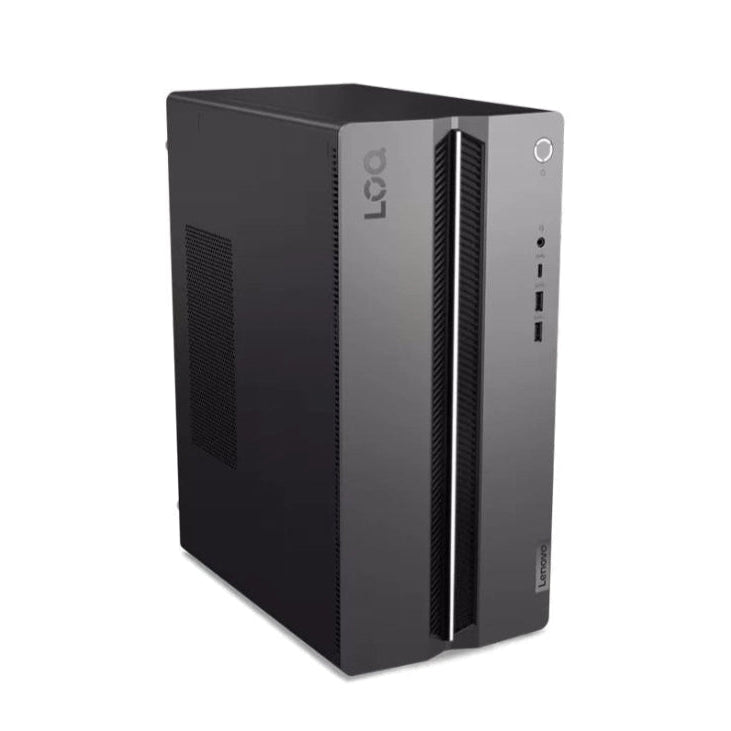

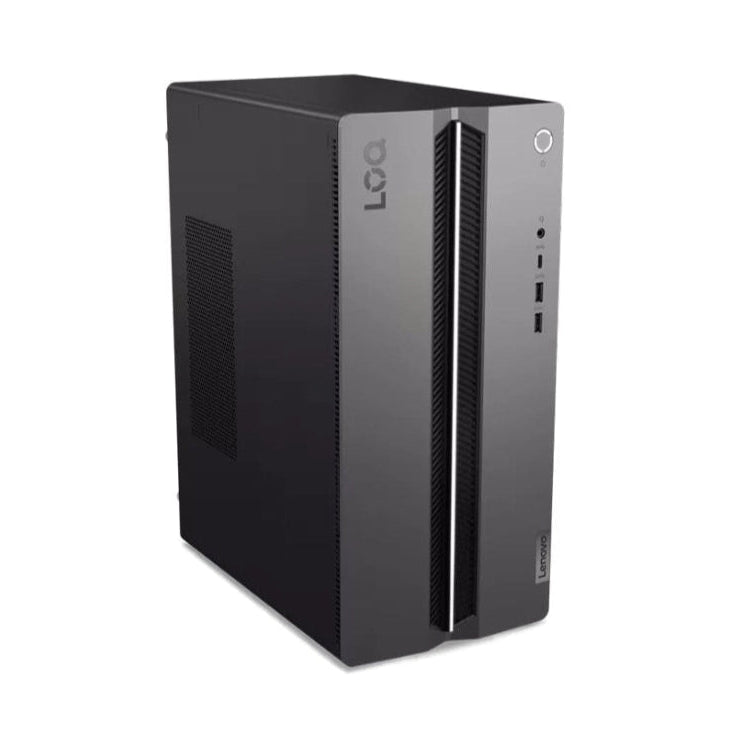

Lenovo LOQ Tower 17IAX10 91AY001GPH Desktop

The Lenovo LOQ Tower 17IAX10 91AY001GPH is a high-performance desktop built for gamers, creators, and power users who demand speed, reliability, and future-ready hardware. Powered by a 13th Gen Intel Core i7 processor, it delivers fast, responsive computing for everything from high-end gaming to intensive multitasking and content creation. Paired with 16GB of DDR5 RAM and a 512GB PCIe NVMe SSD, the system ensures fast load times, smooth performance, and ample storage space.

This desktop also features an NVIDIA GeForce RTX 4060 graphics card, enabling stunning visuals, real-time ray tracing, and smooth frame rates for modern AAA titles and GPU-intensive tasks. The spacious 17L tower design allows for efficient airflow and future upgrades, while the sleek and minimalistic look fits well into any setup.

Connectivity options include multiple USB Type-A and Type-C ports, HDMI and DisplayPort outputs, and Ethernet for stable online gaming and streaming. With Wi-Fi 6 and Bluetooth support, wireless connections are fast and reliable. Running Windows 11 Home, the Lenovo LOQ Tower delivers a modern and efficient user experience tailored for both work and play.

Technical Specifications:

PERFORMANCE

AI PC Category None

Processor Intel® Core Ultra 7 255HX, 20C (8P + 12E) / 20T, Max Turbo up to 5.2GHz, 30MB

NPU Integrated Intel® AI Boost, up to 16 TOPS

Graphics NVIDIA® GeForce RTX? 4060 8GB GDDR6

Chipset Intel® HM870 Chipset

Memory 32GB SO-DIMM DDR5-5600 (2x 16GB)

Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory Up to 32GB DDR5-5600

Storage 1TB SSD M.2 2280 PCIe® 4.0x4 NVMe®

Optane Memory None

Storage Support Up to two drives, 2x M.2 SSD ? M.2 SSD up to 1TB each

Card Reader None

Optical None

Audio Chip High Definition (HD) Audio, Realtek® ALC623-CG codec

Speakers No speakers

Power Supply 500W 92%

DESIGN

Keyboard USB Calliope Keyboard, Luna Grey, English

Mouse USB Calliope Mouse, Luna Grey

Expansion Slots One PCIe® 4.0 x16, full height

One PCIe® 3.0 x1, full-height

Three M.2 slots (one for WLAN, two for SSD)

Case Color Luna Grey (Front Bezel), Raven Black (Chassis)

System Fan 1x Front + 1x Rear

Pen Pen Not Supported

Form Factor Tower (17L)

Dimensions (WxDxH) 170 x 279.7 x 376 mm (6.69 x 11.01 x 14.8 inches)

Weight Around 6.7 kg (14.77 lbs)

CONNECTIVITY

WLAN + Bluetooth Wi-Fi® 6, 802.11ax 2x2 + BT5.2

WWAN Non-WWAN

Ethernet Integrated 100/1000M

Front Ports 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2)

2x USB-A (USB 10Gbps / USB 3.2 Gen 2)

1x headphone / microphone combo jack (3.5mm)

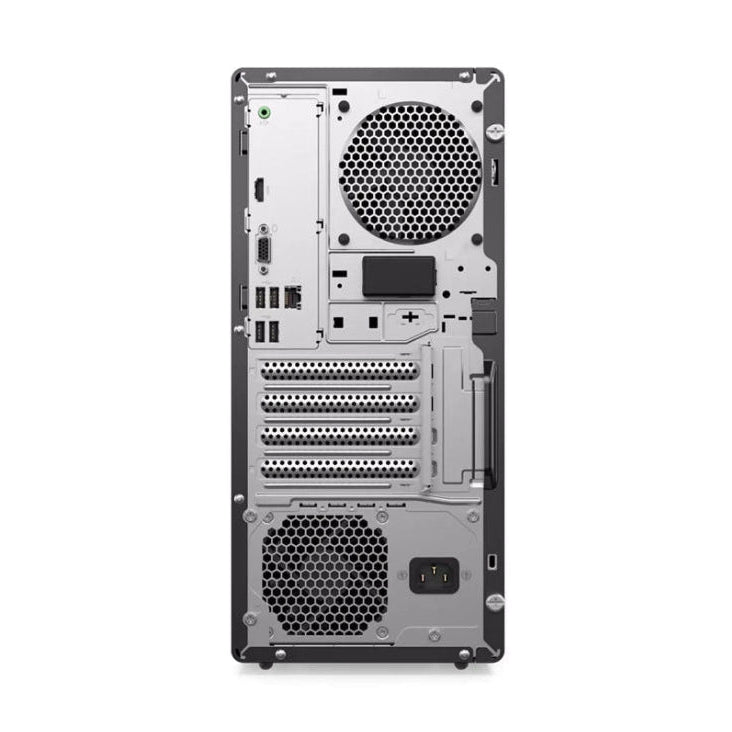

Rear Ports 2x USB-A (Hi-Speed USB / USB 2.0)

2x USB-A (USB 5Gbps / USB 3.2 Gen 1)

1x HDMI® 2.1 TMDS

1x Ethernet (RJ-45)

1x audio-out (3.5mm)

1x power connector

SECURITY & PRIVACY

Security Chip Firmware TPM 2.0 integrated in chipset

SERVICE

Base Warranty 1-year, Courier or Carry-in

Included Upgrade 3Y Premium Care - Idea DT (ESS)

CERTIFICATIONS

Green Certifications ErP Lot 3

RoHS compliant

-

SOFTWARE

Operating System Windows® 11 Home Single Language, English

Bundled Software Office Home 2024
